Plastic PA66 Encapsulation Fast Blow 19x5.2x19.2mm Auto Blade Fuse ATO 32V 58V 60V 80V 3Amp Violte Max Medium Sized

Model Number : AB19003

Certification : RoHS,UL

MOQ : 1000 Pieces

Price : Negotiable

Payment Terms : T/T,Paypal

Supply Ability : 100,000,000 Pieces Per Month

Delivery Time : 2 Weeks

Packaging Details : Bulk, 1000pcs per bag

Product Name : 19mm Auto Blade Fuse

Size : 19x5.2x19.2mm

Rated Current : 3A

Voltage Rating : 32V/58V/60V/80V

Encapsulation : Plastic PA66

Metal : Zinc Alloy

Standard : SAE J1284/ UL 248

Fuse Type : Fast-acting

Contact Now

Plastic PA66 Encapsulation Fast Blow 19x5.2x19.2mm Auto Blade Fuse ATO 32V 58V 60V 80V 3Amp Violte Max Medium Sized

General

The Aolittel AB19 Blade Fuse is an ATO Plastic PA66 Encapsulation Fast Blow 19x5.2x19.2mm Auto Blade Fuse ATO 32V 58V 60V 80V 3Amp Violte Max Medium Sized

style blade fuse rated at 32V/58V/60V/80V, featuring a three part construction with copper contacts for excellent reliability in harsh environment conditions and low voltage drop. Current ratings 3A thru 45A. Filled with arc-quenching material.

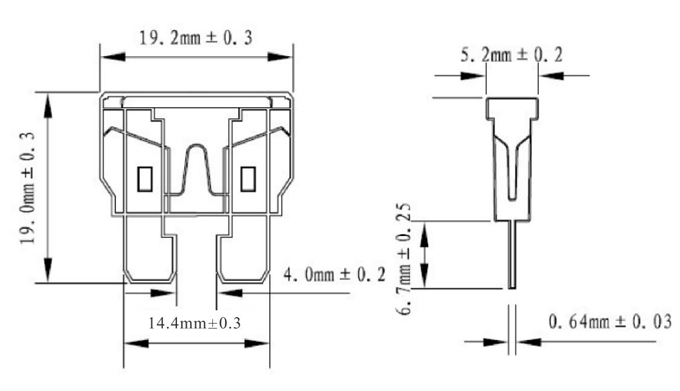

Size

Plastic PA66 Encapsulation Fast Blow 19x5.2x19.2mm Auto Blade Fuse ATO 32V 58V 60V 80V 3Amp Violte Max Medium Sized

Fast Acting, Low Voltage For UP To 32V/60V DC
Material	Body: Plastic. Metal: Zinc Alloy
Standard	According To SAE J1284
Circuit Protection To Replace Fusible Wire OR Fusible Link.
Fuses Are Color-Coded For Easy Amperage Identification.

Electrical Performances

Part Number	Ampere(A)	Voltage (VDC)	Body Color
AB19001	1A	32V/60V	Black
AB19002	2A	32V/60V	Gray
AB19003	3A	32V/60V	Violte
AB19004	4A	32V/60V	Pink
AB19005	5A	32V/60V	Tan
AB1907.5	7.5A	32V/60V	Brown
AB19010	10A	32V/60V	Red
AB19015	15A	32V/60V	Blue
AB19020	20A	32V/60V	Green
AB19025	25A	32V/60V	Natural
AB19030	30A	32V/60V	Green
AB19035	35A	32V/60V	bottle green
AB19040	40A	32V/60V	Orange
AB19045	45A	32V/60V	Violte

Time-Current Characteristics

In	110%In	135%In		200%In		350%In		600%In
20-120A	>100Hours	Min.	Max.	Min.	Max.	Min.	Max.	Min.	Max.
20-120A	>100Hours	60 s	3600 s	2 s	60 s	0.2 s	7 s	0.04 s	0.1 s

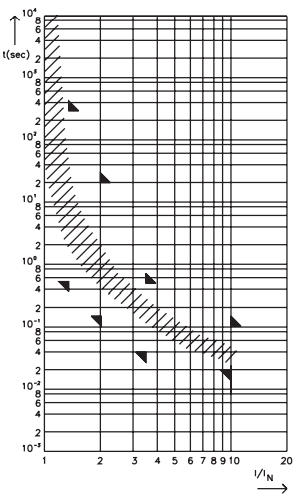

Pre-Arcing Time-Limits

Plastic PA66 Encapsulation Fast Blow 19x5.2x19.2mm Auto Blade Fuse ATO 32V 58V 60V 80V 3Amp Violte Max Medium Sized

FI = 1.43 (max.operating current: 0.7 x Irat at 23°C)

Size groups

Blade Size	Blade Group	Dimensions L × W × H	Common Ratings (Maximum Current)
Micro2	APT, ATR	9.1 × 3.8 × 15.3 mm	5, 7.5, 10, 15, 20, 25, 30
Micro3	ATL	14.4 × 4.2 × 18.1 mm	5, 7.5, 10, 15
LP-Mini	APS, ATT	10.9 × 3.81 × 8.73 mm	2, 3, 4, 5, 7.5, 10, 15, 20, 25, 30
Mini	APM, ATM	10.9 × 3.6 × 16.3 mm	2, 3, 4, 5, 7.5, 10, 15, 20, 25, 30
Regular	APR, ATC (Closed), ATO (open), ATS	19.1 × 5.1 × 18.5 mm	0.5, 1, 2, 3, 4, 5, 7.5, 10, 15, 20, 25, 30, 35, 40
Maxi	APX	29.2 × 8.5 × 34.3 mm	20, 25, 30, 35, 40, 50, 60, 70, 80, 100, 120

Color coding

Color	Continuous ampere (=rated current)	Instantaneous fusing ampere	Continuous fusing ampere
Blue	1.5	3.5	3
Yellow	2.25	5	4.5
Red on Yellow	2.5	6	5
Green	3	7	6
Nut Brown	4	10	8
Red on Green	5	12	10
Green on Black	5	12	10
Red on Brown	6	14	12
Light Brown	7.5	18	15
Pink	12.5	30	25
White	17.5	40	35
Purple on Yellow	25	60	50
Yellow on Red	30	75	60

Plastic PA66 Encapsulation Fast Blow 19x5.2x19.2mm Auto Blade Fuse ATO 32V 58V 60V 80V 3Amp Violte Max Medium Sized

Product Tags:

mini blade car fuses

mini blade fuses for cars

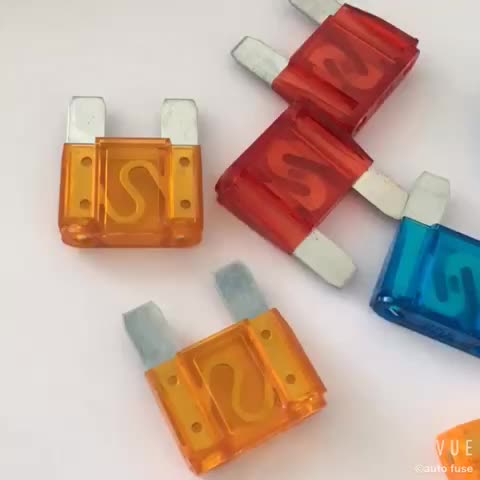

Plastic PA66 Encapsulation Fast Blow 19x5.2x19.2mm Auto Blade Fuse ATO 32V 58V 60V 80V 3Amp Violte Max Medium Sized Images
