UL248-14 High Inrush Current Withstand 0603 Slow Blow SMD Fuse 32VDC 1A 1.5A 2A 2.5A 3A 4A 5A
Main Features
Apart from protective components , we also can provide customzied offer such as we have been producing all kinds of ODM/OEM PCB in different fileds such as LED,Power suppy, etc.
| Name | SMD Fuse |
| Advantage | High Inrush Current Withstand |
| Standard | UL248-1 UL248-14 |
| Interrupting Rating | 50A@32V |
| Operating Temperature | -55~+125C |
| Material | Substrate:ceramic/glass cover
Termination:sliver over-plated with nickel and tin
Element:silver |
| Speed | Time-delay |
| Solering method | Reflow soldering: 260℃, 10s max |
| UNSPSC | 30212009 |
| HS Custom Number | 8536101090 |
Size (mm)
Electrical Characteristics
| % of Ampere Rating | Opening Time |
| 100% | 4 hours Min |
| 200% | 1 s~60 s |
| 250% | 5 s Max |
Part Numbering
| Catalog | Ampere | Voltage |
Marking | Melting Integral |
| No. | Rating | Rating | (A2.S) |
| 06H1100D | 1A | 32V | H | 0.017 |
| 06H1150D | 1.5A | 32V | K | 0.060 |
| 06H1200D | 2A | 32V | N | 0.183 |
| 06H1250D | 2.5A | 32V | O | 0.240 |
| 06H1300D | 3A | 32V | P | 0.270 |
| 06H1400D | 4A | 32V | S | 0.936 |
| 06H1500D | 5A | 32V | T | 1.865 |
Description
High inrush current withstanding capability
Compatible with reflow and wave solder
Rugged ceramic and glass construction
Excellent environmental performance
RoHS Compliant ,Lead Free & Halogen Free material
Environmental Data
Life Test: MIL-STD-202, Method 108A
Humidity Bias: MIL-STD-202 , Method 103
Moisture Resistance Test: MIL-STD-202, Method 106G
Thermal Shock: MIL-STD-202, Method 107G
Terminal Strength Test:AEC-Q200-005 Appendix 2 Note: 1mm (Min)
Vibration: MIL-STD-202, Method 204D
MechanicalShock:MIL-STD-202,Method 213B
Solderability: ANSI/J-STD-002
Resistance to Solder Heat: MIL-STD-202,Method 210A
Resistance to Solvents Test: MIL-STD-202, Method 215A
Application
Telecommunication: Cell Phones / PDA / DSL
Computers: LCD Panel / Printers/ Laptop/ Servers
Consumer Electronics: DVD player / MP3 MP4 Player
Portable memory LCD monitors Disk drives PDAs Digital cameras DVDs
Cell phones Rechargeable battery packs Battery chargers Set top boxes Industrial controllers

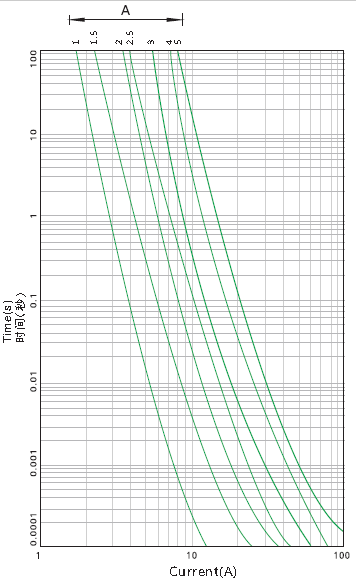

Time-Current Characteristics
